VIGIL3 PAVA System

The next generation in Voice Alarm Systems

VIGIL3 is our next generation Voice Alarm system providing the assurance of top quality British manufacturing along with a system that we have designed with a vision of future-proofing our technologies for many years to come.

Meaningful, user-friendly, safe, and compliant, Baldwin Boxall’s VIGIL3 system is built with the latest features, such as user-configurable touchscreen control, and site-wide configuration from a single point.

Built on decades of experience, VIGIL3 is our most flexible, scalable and powerful system to date. With up to 400 inputs and 800 outputs possible on a single system, VIGIL3 is an investment for the future.

Configuring a VIGIL3 system, no matter the size, whether centralised or de-centralised, can be done from a single point. This means any adjustments can be done without the hassle of walking long distances between different points of the system to repeat changes. An engineer can simply make the changes, such as the uploading of new messages or any other configuration requirement at the closest, or most accessible point, saving valuable time.



  • Fault-tolerant Ethernet backbone
  • VIGIL3 is entirely modular – systems can grow according to a user’s needs.
  • 400 inputs and 800 outputs possible on a single system
  • Suitable for single, centralised and de-centralised systems
  • Single point for configuration/message upload/fault log access
  • Truly distributed but forming a single voice alarm system
  • Can be realised as both rack and wall mounted (Eclipse5) systems
  • No Ethernet switches required
  • Up to 24 band parametric EQ on outputs
  • No software licence payments – ever
  • All connections monitored for reliability and peace of mind
  • Mix & match copper and fibre network interfaces
  • Fast and responsive – even on very large systems

BV300D / BV150D / BV075D
Amplifier – transformerless
Dual 300W / Dual 150W / Dual 75W
142mm x 75mm x 311mm
3.1 kg / 2.3 kg / 2.3 kg

BV150Q / BV075Q
Amplifier – transformerless
Quad 150W / Quad 75W
142mm x 75mm x 311mm
3.1 kg / 3.1 kg

BV3MF
Amplifier mainframe
Holds up to 3 VIGIL3 amplifiers

BV3AOM8
Audio output module
75mm x 71mm x 311mm
1.1 kg

BV3AIM2 / BV3AIM4
Audio input module
2 inputs / 4 inputs
DIN rail mounted
111mm x 129mm x 55mm / 111mm x 129mm x 75mm
0.36 kg / 4 kg

BVMBC
Battery charger/monitor module
75mm x 71mm x 311mm
1.1 kg

BV3FPI
Fire panel interface

BV3BYP
Processor hard-wired bypass interface

BVRDCI
Universal zonal access switching interface

BVRDCIMON
VACIE/CIE interface monitor

BV3MDP10F / BV3MDP05F
Mains distribution w. fans
10-way / 5-way

BV3MDPEFM
Exhaust fan module

BV3EFM
Exhaust fans & cooling control for
up to 3 amplifiers

BV3CIF / BV3FIFM / BV3FIFS
Networking interface
Copper / multi-mode fibre / single-mode fibre

Safe & Compliant

EN54 Certified

BS EN 54: Fire Detection & Fire Alarm Systems, is a mandatory standard that specifies requirements and laboratory testing for every component of fire detection and fire alarm system.

UKCA UK Conformity Assessed

UKCA (UK Conformity Assessed) marking on products replaces CE marking in the UK and requires that certification of construction products, such as VACIE / Voice Alarm Control & Indicating Equipment is performed by a UK-based approved body.

British Standards BS5839-8 Code of Practice
BS 5839-8 is a BSI Standards Publication code of practice providing recommendations for the design, installation, commissioning, and maintenance of voice alarm systems that automatically broadcast speech or warning tones, in response to signals from their associated fire detection and fire alarm systems.

Key Benefits

Responsible Manufacturing

Our aim is to shape a greener future

for a more environmentally friendly world

VIGIL3 PAVA System

Fast. Powerful. Flexible. VIGIL3 is built with a fault-tolerant ethernet backbone, no ethernet switches are required and there are no licence fees. From a single rack to large distributed systems with hundreds of outputs, use wall mount or rack mount for outputs in any combination.

Documentation & Downloads

Looking for something in particular?

Search our full database of downloads and documentation

VIGIL3 Product Range

Voice Alarm

VIGIL3 Amplifiers

Transformerless amplifiers, modular, energy-efficient and powerful. Range includes dual & quad amplifier options.

Voice Alarm

VIGIL3 Battery Charger

Compact module continually monitors system backup batteries & charges them whenever necessary.

Voice Alarm

VIGIL3 Audio Output Module

With VIGIL3 there is no need for the conventional ‘router-style’ control. Supports up to 8 audio outputs – network up to 100 units.

Voice Alarm

Powerful stand-alone, wall-mounted PAVA system. Ideal for fitting into building risers or places where space is limited.

Voice Alarm

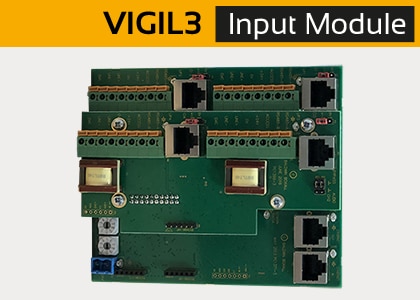

VIGIL3 Audio Input Module

6-band parametric EQ and programmable priority for each input. Configure every input from a single point on the VIGIL3 network.

Voice Alarm
Built on a dedicated, fault-tolerant, Ethernet backbone with a range of networking options.
Voice Alarm

VIGIL3 Line Monitoring

All critical signal paths of a voice alarm system must be fully monitored & faults automatically indicated on key parts of the system.

Audio Loudspeakers

Loudspeakers

Powerful high-clarity loudspeakers for public address and voice alarm systems for both indoor and outdoor installations.

Microphones & Control Options for VIGIL3

Touch Control

User-configurable, large format touchscreen Graphical User Interface (GUI) enables graphical control of our VIGIL3 and Eclipse5 systems. Upload logos, background images, edit buttons and much more.

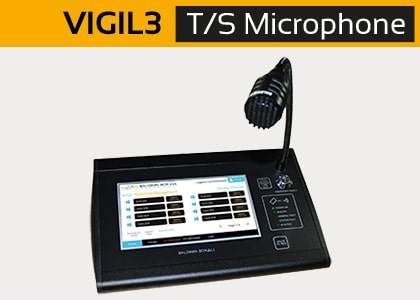

Touch Control

Easy-to-use microphone with a touch sensitive screen for full control of a VIGIL3, VIGIL2, Eclipse4 or Eclipse5 system. Multi-function: NFC log in, select & route background music, emergency control mode and more.

Fire Microphones

Baldwin Boxall Emergency Fire Microphones are housed in a robust, lockable steel enclosure and include a rugged, fist-held microphone console. Wall mountable and rack mounting units available.

Paging Microphones

BDM400 range of intelligent PA microphones with a variety of features to suit all installations. Suitable for connection to any of our voice alarm or public address systems – including VIGIL3 & Eclipse5.

Ambient Microphones

Ambient Noise Sensors (ANS) continually monitor the noise level (in a zone/area) and automatically adjust the volume of system broadcasts to that area – thus ensuring audibility at all times. Connect as part of any of our voice alarm systems.

Room Panels

Control Panels enable local control of audio facilities such as volume adjustment, music source selection and microphone input.
