OmniCarePLUS EVC System
Providing an unprecedented capacity of up to 2,048 outstations within a single system
OmniCarePLUS makes it possible for especially large Disabled Refuge/Fire Telephone Emergency Voice Communication (EVC) systems with as many as 2,048 outstations on a single system.
OmniCarePLUS is not limited to a single touchscreen control point – additional controllers can be added in alternative control or security rooms. Full control can be transferred to these slave/mimic control points.
Specially designed OmniCare panels can allow ‘local area’ control enabling control of outstations on a single floor, area, or building block. Up to 64 outstations can be connected to a local area control panel and each local area control panel can communicate with connected outstations.
The system is compatible with all outstations available in the OmniCare range. These can be connected in any combination to a panel on the system.
Each OmniCarePLUS project is unique. Our qualified team will design, build and test the system ensuring your requirements are perfectly met.

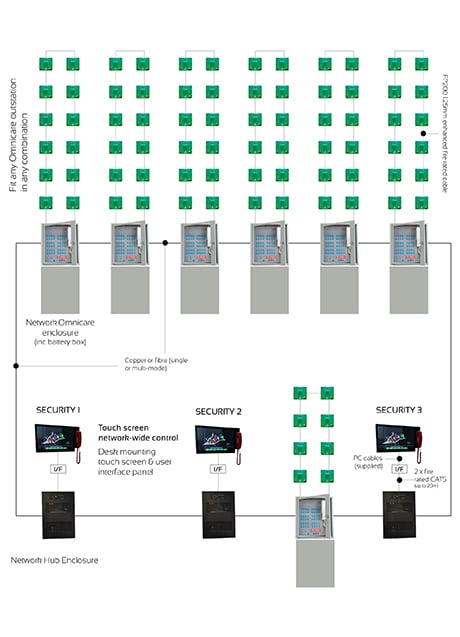

- OmniCarePLUS is made up of multiple BS5839-9:2021 compliant ‘local’ systems which are connected to form a network.
- Site-wide system control is carried out by the use of a graphic layout on a touchscreen PC.
- The graphic on the screen is multi-layer, providing the user with an easy-to-use, and instantly recognisable interface for the system.
- OmniCarePLUS is not limited to a single touchscreen control point – additional points can be added to the system, enabling placement in alternative control or security rooms.
- Additional touchscreens will be slaves/mimic panels, unless full control is transferred to the panel due to compromise of the master control point or if required by the user.
- For ‘local network’ control (i.e. control of the outstations on a single floor/area/building block) specially designed OmniCare panels are employed. Up to 64 outstations can be connected to a local network control panel.
- Each local network control panel is able to communicate with the outstations connected to that unit.
- Up to 32 local network control panels can be installed on an OmniCarePLUS system.
- The system is compatible with all of the outstations available in the OmniCare range. These can be connected in any combination to each local network control panel.
BVOCTSPCD /BVOCTSPCM
OmniCarePLUS Control Hub, includes:
Touchscreen PC
Desk mount / monitor mount handset
Wall mounted hub (BVOCTSHUB)
Hub backup batteries
BVOCTSHUB: 500mm x 725mm x 200mm
BVOCTSGLB / BVOCTSGL5
OmniCarePLUS Touchscreen Software
Graphic format
20 layers / additional 5 layers
BVOCTSGLB
OmniCarePLUS Touchscreen Software
Button layout
Single layer
BVOCTSC08 / BVOCTSC16 / BVOCTS32 / BVOCTSC48 / BVOCTSC64
Local Control Panel
8 / 16 / 32 / 48 / 64-way
Grey
410mm x 455mm x 200mm
BVCRFB1
Bezel for flush mounting 48 to 64-way panels
Grey
461mm x 506mm with 25mm radius (c/o 420W x 465H)
1 kg
BVCRM1
Rack mount kit for 48 to 64-way panels
1 kg
KEYBVE
Spare Key for panel
BVOBATT / BVOBATT2
Battery box enclosure
Grey
410mm x 290/600mm x 200mm
6.4 kg / 13.56 kg
BVRDCIF / BVRDFIF / BVRDFIFS
Network Interfaces
Copper / multi-mode fibre / single-mode fibre
BVOCECPG / BVOCECPS
Disabled Refuge Outstation
Green / stainless steel
134mm x 134mm x 56mm
1 kg / 1 kg
BVCRMGRN / BVCRMSS
Bezel for flush mounting BVOCECPG / BVOCECPS
Green / stainless steel
154mm x 154mm (c/o 136W x 136H)
BVCRFBG / BVCRFBS
Plasterboard Backbox for BVOCECPG / BVOCECPS
Green / stainless steel
131mm x 142mm x 65mm (c/o 132W x 143H)
BVCRIPBG
IP65 rated enclosure for BVOCECPG
Green
200mm x 200mm x 80mm
2.2 kg
KEYBVR
Spare key for BVOCECPG / BVOCECPS
BVOCA2G / BVOCA2S
Advanced Disabled Refuge Outstation
Green / stainless steel
178mm x 440mm x 64mm
3.5 kg / 3.5 kg
BVOCA2GBZ / BVOCA2SBZ
Bezel for flush mounting BVOCA2G / BVOCA2S
Green / stainless steel
230mm x 490mm (c/o 190W x 450H)
BVOCFL / BVOCFSL
Fire Telephone
Lock door
Red / stainless steel
130mm x 350mm x 100mm
3.5 kg / 4 kg
BVOCF / BVOCFS
Fire Telephone
Push door
Red / stainless steel
130mm x 350mm x 100mm
3.5 kg / 4 kg
BVOCFB / BVOCFLB
Fire Telephone, with
Beacon (supplied separately)
Push door / lock door
Red
130mm x 350mm x 100mm (exc. beacon)
3.5 kg / 4 kg
BVFHBEZ / BVFHBEZSS
Bezel for flush mounting BVOCF## / BVOCF##
Red / stainless steel
170mm x 390mm (c/o 138W x 358H)
BVOCET / BVOCETL
Emergency/Steward Telephone
Push door / lock door
Green
130mm x 350mm x 100mm
3.5 kg /3.5 kg
BVOCETB / BVOCETLB
Emergency/Steward Telephone, with
Beacon (supplied separately)
Push door / lock door
Green
130mm x 350mm x 100mm (exc. beacon)
3.5 kg / 4 kg
BVOCETBZ
Bezel for flush mounting BVOCET##
Green
170mm x 370mm (c/o 136W x 336H)
BVOCC / BVOCCSP / BVOCCGCP
Combined Outstation, single enclosure with
Fire Telephone & Disabled Refuge Unit
Push door
Red / stainless steel / red FT & green DR
130mm x 480mm x 100mm
4.5 kg / 4.5 kg
BVOCCL / BVOCCSL
Combined Outstation, single enclosure with
Fire Telephone & Disabled Refuge Unit
Lock door
Red / stainless steel
130mm x 480mm x 100mm
4.5 kg / 4.5 kg
BVOCCB / BVOCCLB
Combined Outstation, single enclosure with
Fire Telephone & Disabled Refuge Unit, and
Beacon (supplied separately)
Push door / lock door
Red
130mm x 480mm x 100mm (exc. beacon)
4.5 kg / 4.5 kg
BVOCFBR / BVOCFBS
Bezel for flush mounting BVOCC##
Red / stainless steel
170mm x 520mm (c/o 138W x 488H)
DTAKIT / DTASKIT
Disabled Toilet Alarm Kit
White / stainless steel
(Connect to loop via BVOCRIF)
0.34 kg / 0.48 kg
BVOCRIF
Repeater/Interface
0.76 kg
Safe & Compliant
BS5839-9 is a code of practice for those who install, maintain and commission EVC systems, giving guidance on how to install an effective system as part of a fire detection and alarm system covering all components including wireless.
BS9999 is a BSI Standards Publication providing guidance for fire safety in the design, management and use of buildings. It includes the provision of evacuation methods and placement of EVC systems.
Key Benefits
- Multiple BS5839-9:2021 Compliant 'local' systems
- Graphical touchscreen site-wide control
- Loop Wired (Fire Rated Four-Core Cable)
- Fully Monitored
- Connect up to 32 Panels with 64 outstations
- Connect up to 2,048 outstations
- Compatible with the entire range of OmniCare outstations
- Choice of copper and fibre (single or multi-mode) networking
- Automatic incoming call queuing
- Optional pin number based access
- Activity reporting with time & date stamp
- All Call announcement facility
